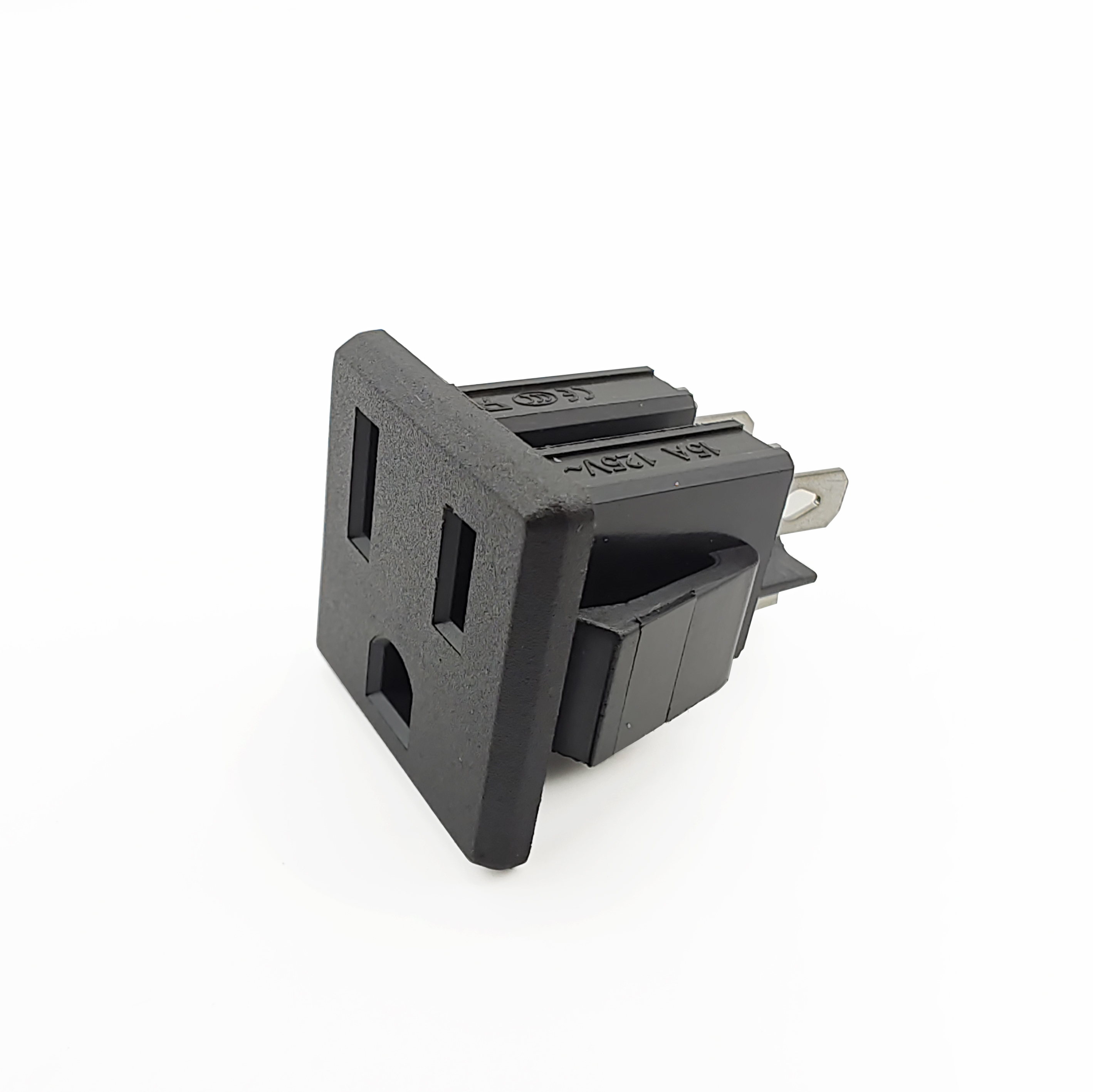

NEMA 5-15R North American Standard Power Socket

- Interface Standard: NEMA 5-15R North American standard 3-prong AC power socket, compatible with NEMA 15A plugs
- Mounting Type: Panel embedded mounting, through-hole soldering terminals for PCB installation, suitable for equipment power modules
- Structure & Material: Flame retardant PC/ABS housing + high conductivity nickel-plated copper alloy terminals, high temperature and flame resistant
- Electrical Performance: Rated voltage 125V AC, rated current 15A, contact resistance ≤20mΩ, insulation resistance ≥100MΩ
- Mechanical Performance: Insertion/withdrawal life ≥5000 cycles, operating temperature -20℃~+85℃
- Typical Applications: AC power input port for North American standard power equipment, socket panels and small household appliances
