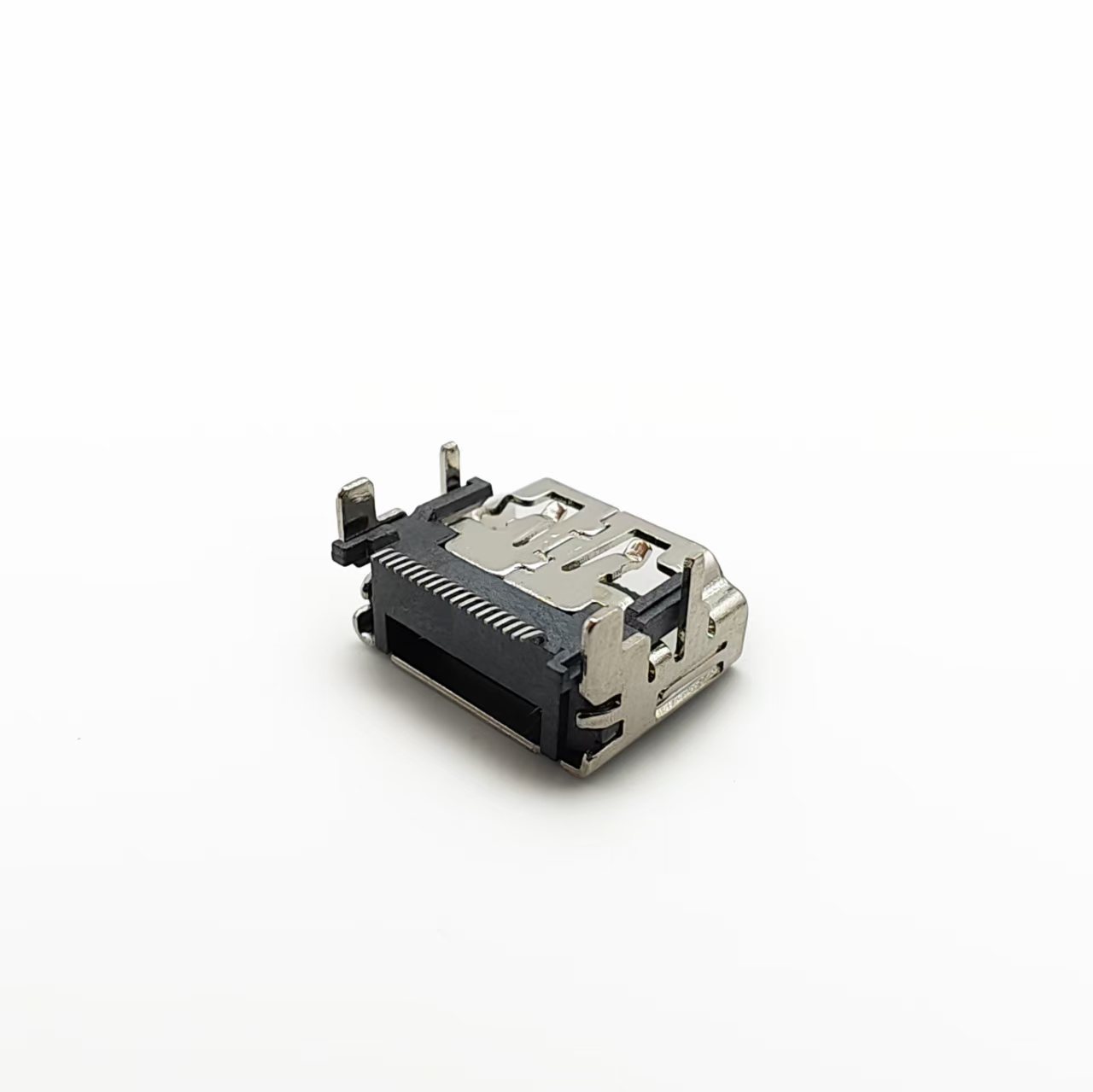

HDMI Type-A 19Pin Horizontal SMT Female Connector (High-Definition Video Interface)

- Interface Standard: Compliant with HDMI 1.4/2.0 standard, 19Pin full-function design, supporting high-definition video/audio signal transmission
- Mounting Type: Horizontal surface mount (SMT) + 4-pin through-hole (DIP) hybrid installation, suitable for reflow soldering process with stable positioning
- Structure & Material: Nickel-plated metal shell + high-temperature resistant LCP insulator + gold-plated copper alloy terminals, anti-corrosion and anti-oxidation
- Electrical Performance: Rated voltage DC 30V, rated current 0.5A, contact resistance ≤30mΩ, insulation resistance ≥1000MΩ, supporting up to 4K@60Hz video transmission
- Mechanical Performance: Insertion/withdrawal life ≥10,000 cycles, operating temperature -25℃~+85℃
- Typical Applications: Signal transmission interfaces for set-top boxes, monitors, motherboards, gaming consoles and other high-definition video equipment.
