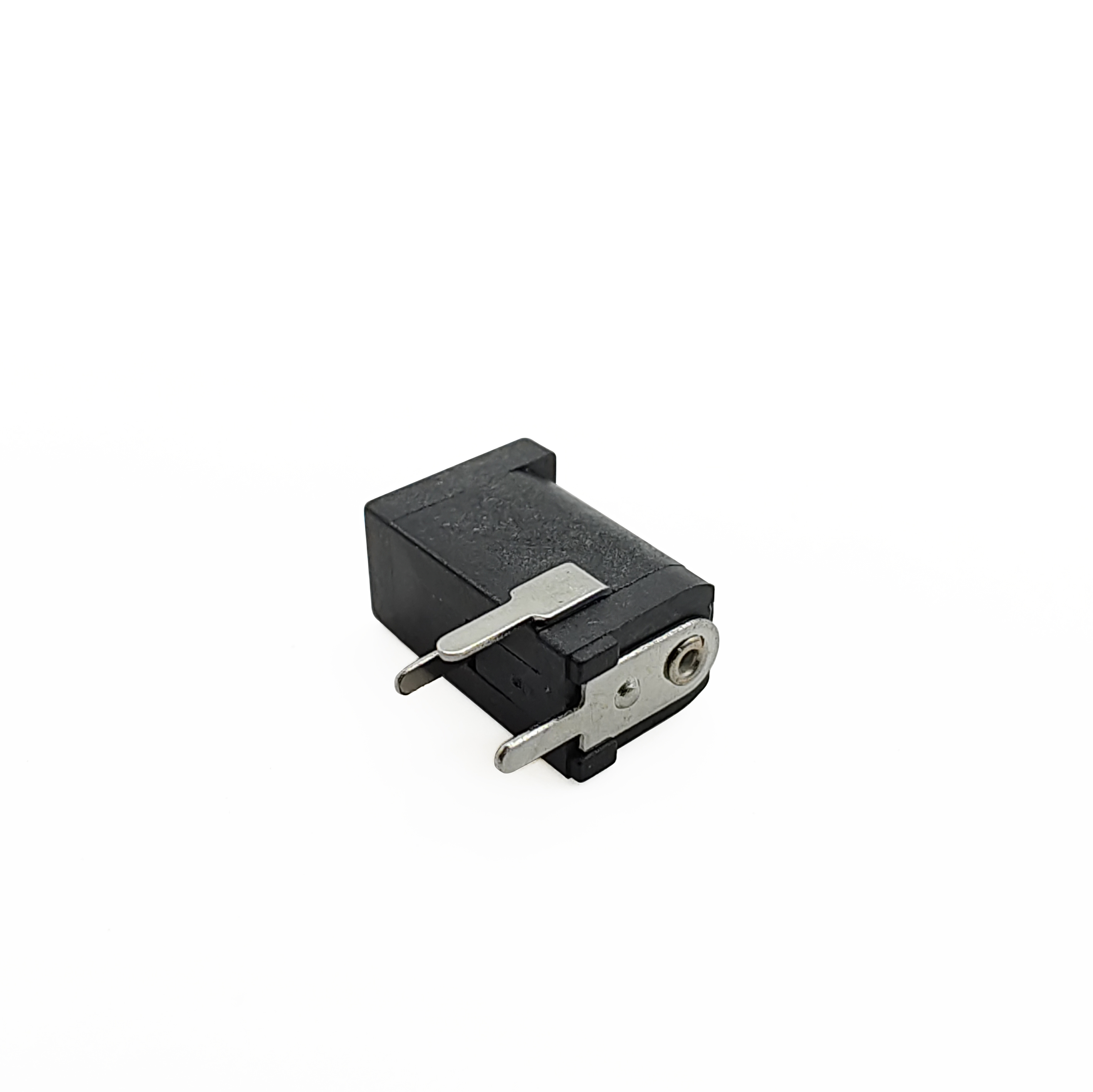

DC Power Jack Socket (Horizontal Through-Hole Type)

- Interface Standard: DC barrel power interface (compatible with 5.5×2.1mm/2.5mm plugs typically), DC power input port
- Mounting Type: Horizontal through-hole (DIP) mounting, PCB soldering, suitable for wave soldering process
- Structure & Material: PBT flame retardant plastic housing, tin-plated copper alloy terminals, metal conductive shrapnel, wear and corrosion resistant
- Electrical Performance: Rated voltage DC 12V, rated current 2A, contact resistance ≤50mΩ, insulation resistance ≥100MΩ
- Mechanical Performance: Insertion/withdrawal life ≥5000 cycles, operating temperature -20℃~+70℃
- Typical Applications: DC power input port for small household appliances, laptops, monitoring equipment and digital products.
