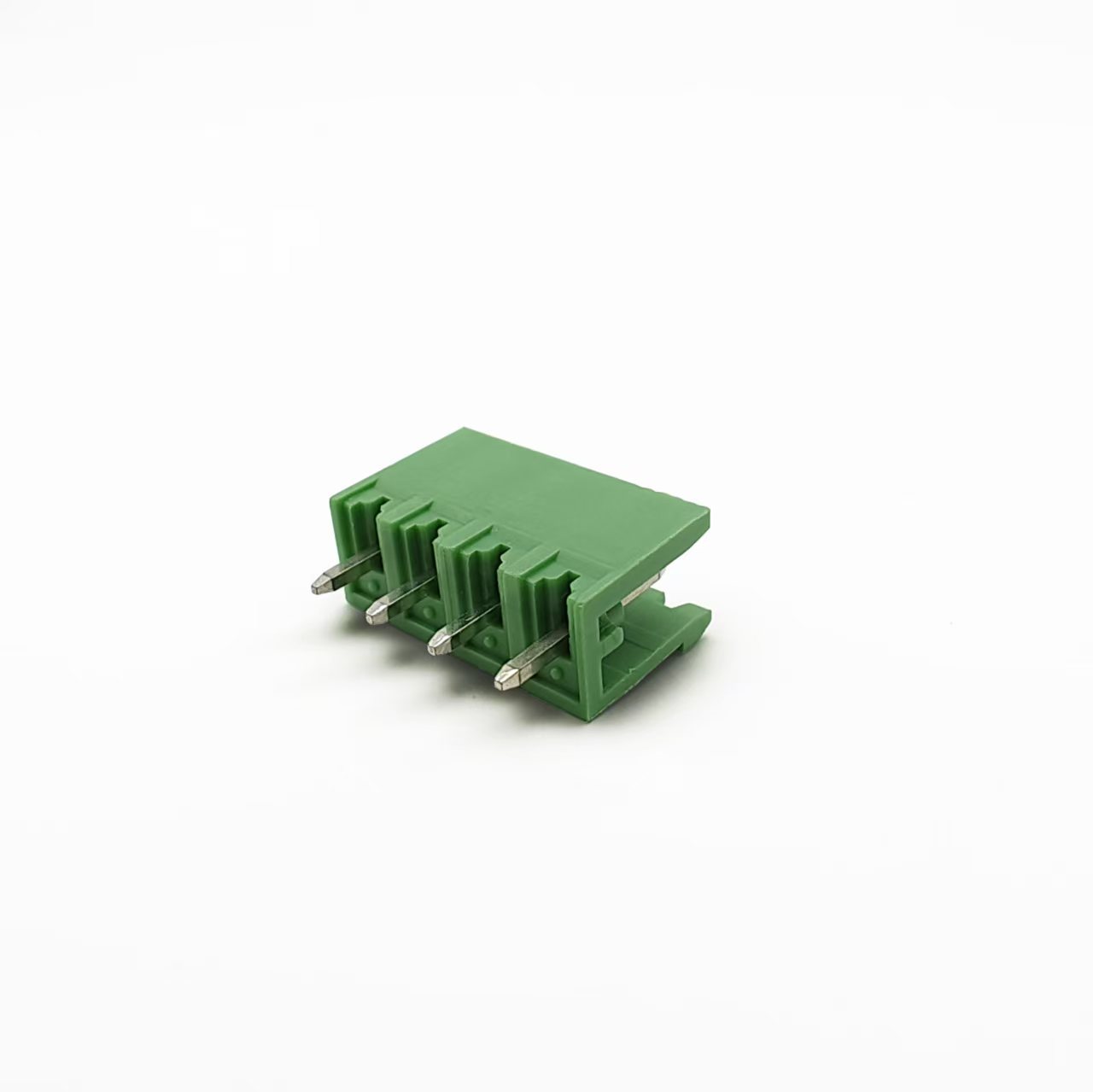

1. Interface Standard: Compliant with IEC 60947-7-1 standard, 5.08mm pitch, 4-pin through-hole design
2. Mounting Type: PCB through-hole (DIP) installation, suitable for wave soldering process, used with matching pluggable terminal housings
3. Structure & Material: PA66 flame retardant insulating housing, tin-plated copper alloy pins, high temperature and oxidation resistant
4. Electrical Performance: Rated voltage 300V AC, rated current 15A, contact resistance ≤10mΩ, insulation resistance ≥100M

GET A QUOTE

Description

- Interface Standard: Compliant with IEC 60947-7-1 standard, 5.08mm pitch, 4-pin through-hole design
- Mounting Type: PCB through-hole (DIP) installation, suitable for wave soldering process, used with matching pluggable terminal housings
- Structure & Material: PA66 flame retardant insulating housing, tin-plated copper alloy pins, high temperature and oxidation resistant
- Electrical Performance: Rated voltage 300V AC, rated current 15A, contact resistance ≤10mΩ, insulation resistance ≥100MΩ
- Mechanical Performance: Operating temperature -40℃~+105℃, insertion/withdrawal life ≥100 cycles
- Typical Applications: Wire connection and signal transmission on industrial control equipment, power modules, instruments and control boards
