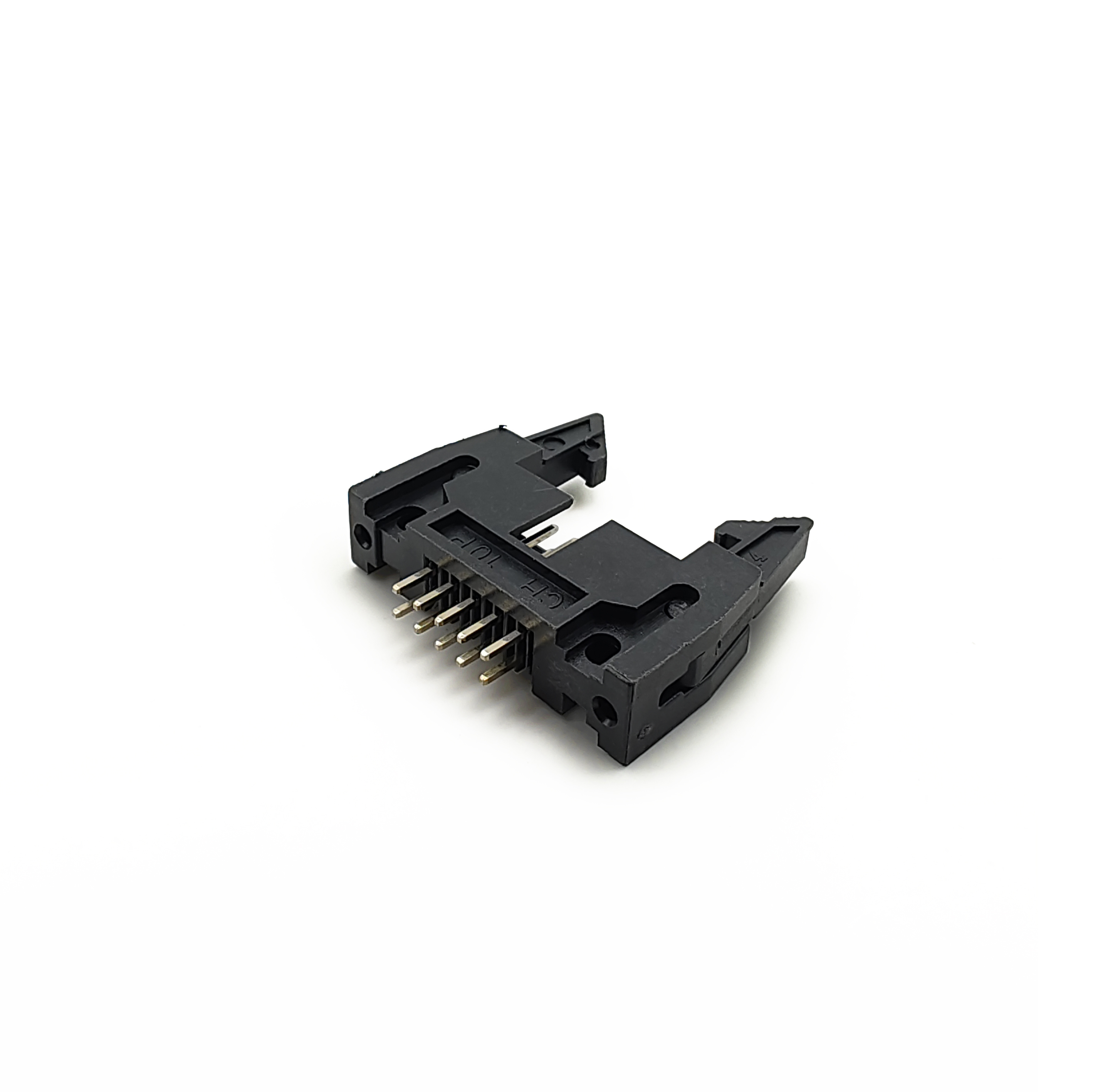

1. Interface Standard: Compliant with 2.54mm pitch IDC standard, 10Pin board-to-cable connection, compatible with standard IDC flat cables
2. Mounting Type: Through-hole (DIP) PCB soldering installation with locating clips, suitable for wave soldering process
3. Structure & Material: PA66 flame retardant insulating housing, gold-plated phosphor bronze pins, anti-oxidation and anti-wear
4. Electrical Performance: Rated voltage 300V DC, rated current 3A, contact resistance ≤20mΩ, insulation resist

GET A QUOTE

Description

- Interface Standard: Compliant with 2.54mm pitch IDC standard, 10Pin board-to-cable connection, compatible with standard IDC flat cables
- Mounting Type: Through-hole (DIP) PCB soldering installation with locating clips, suitable for wave soldering process
- Structure & Material: PA66 flame retardant insulating housing, gold-plated phosphor bronze pins, anti-oxidation and anti-wear
- Electrical Performance: Rated voltage 300V DC, rated current 3A, contact resistance ≤20mΩ, insulation resistance ≥1000MΩ
- Mechanical Performance: Insertion/withdrawal life ≥5000 cycles, operating temperature -40℃~+85℃
- Typical Applications: Signal transmission ports for industrial control boards, motherboard expansion interfaces, internal equipment wiring and data acquisition modules
